HT11 Series Tower Online UPS 6-20kVA (220V/230V/240V)
This series single phase tower online UPS contain a standard model with built-in batteries and a long backup model.Smaller size with higher power density, double conversion online UPS with fully DSP controlled technology，this series is a perfect choice for computers, telecommunication equipment and other sensitive devices. The series has 6kVA, 10kVA, 15kVA, 20kVA can be chosen. ( watch the introduction video on YouTube )
Email Us
- Product description
- Features
- Specifications
- Certification
- Download
-
This series single phase tower online UPS contain a standard model with built-in batteries and a long backup model.Smaller size with higher power density, double conversion online UPS with fully DSP controlled technology，this series is a perfect choice for computers, telecommunication equipment and other sensitive devices. The series has 6kVA, 10kVA, 15kVA, 20kVA can be chosen. ( watch the introduction video on YouTube )
-
● High efficiency, up to 95%
● kVA=kW, Output PF=1
● 3 level of technology, compatible with complicated load
● Battery number can be set on LCD
● Intelligent charging management, effectively improving the life time of battery
● Smaller size with higher power density
● Parallel up to 4 units
● 12A charger for option, charging for large capacity batteries
-
-
HT11 Series Tower Online UPS 6-20kVA (220V230V240V) Catalog.pdf
Features

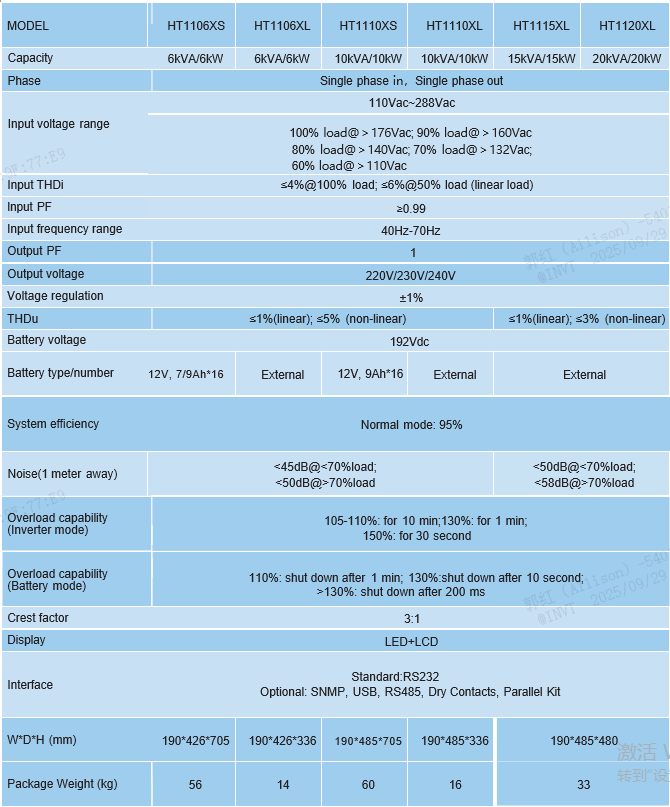

Specifications
Certification
Download
● High efficiency, up to 95%
● kVA=kW, Output PF=1
● 3 level of technology, compatible with complicated load
● Battery number can be set on LCD
● Intelligent charging management, effectively improving the life time of battery
● Smaller size with higher power density
● Parallel up to 4 units
● 12A charger for option, charging for large capacity batteries
